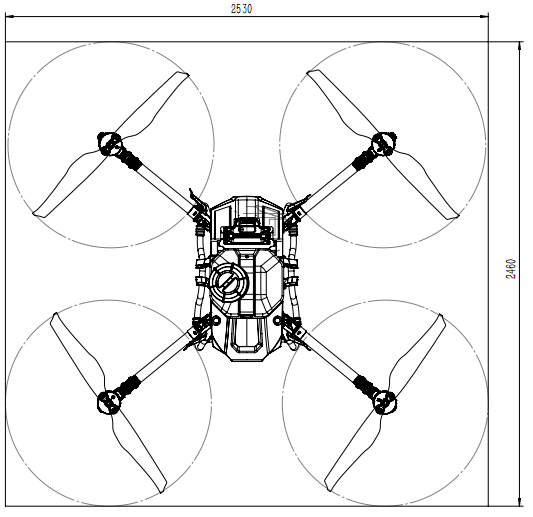

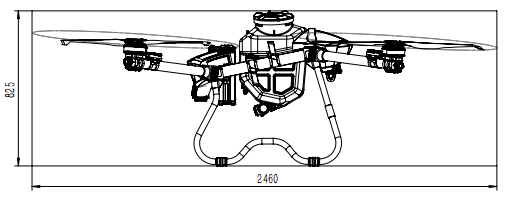

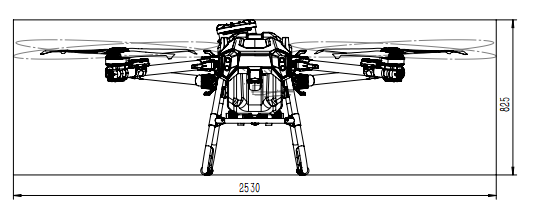

Truss-style Structure Design

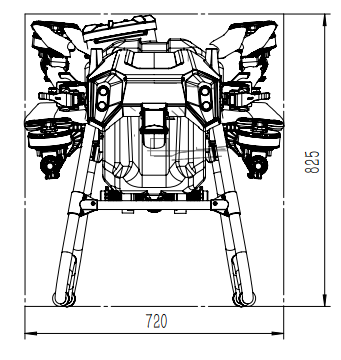

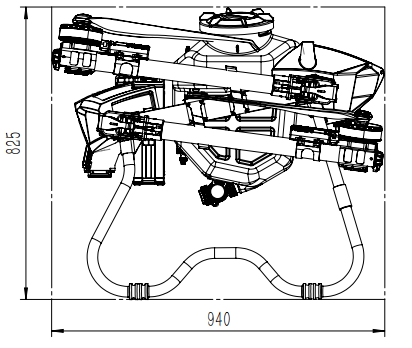

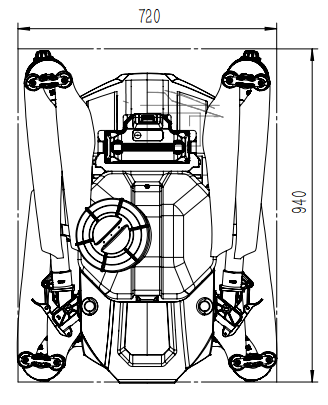

New designed truss- style structure with foldable arms to reduce the body size. High strength aviation aluminum alloy beans equipped with reinforced ribs minimize damage caused by accidence.Integrated pluggable spraying system compatible with spraying and spreading functions.

Brouav V2 Intelligent Flight Control System

V2 system integrates high-precision inertial and satellite navigation sensors, the sensor data is preprocessed, drift compensation and data fusion in the full temperature range,obtain real-time flight attitude, position coordinates, working status and other parameters to complete the high-precision attitude and route control of the multi-rotor UAS platform.

Route planning

Drone route planning is divided into three modes.Plot mode, Sweep mode and Fruiter mode.

Plot mode is a commonly used planning mode. 128 waypoints can be added.Freely set the altitude, speed, obstacle avoidance mode, and flight path.Automatically upload to the cloud, Convenient for the next spray planning.Sweep mode, the drone sprays the boundary of the planned area.Arbitrarily adjust the number of laps for sweeping flight operations.Fruit mode.Developed for spraying fruit trees.The drone can hover, spin and hover at a certain point. Freely choose waypoint/route mode for operation. Set fixed points or slopes to effectively prevent accidents.

Intelligent Power System

BRO smart lithium battery uses high energy cells and an advanced power management system to provide long-lasting power to BRO U series drone. The optimized battery cells and heat dissipation design effectively keep the temperature of the battery in check.
BRO intelligent charger supports single phase and three phase AC power input. Three phase AC input is the fast charging model,which can charge the relative battery fully in 10~15minutes.Additionally, the charger includes overcurrent protection, overcharging protection, under-voltage protection,overheating protection, and status display.

Ultra bright Screen,Convenient Control


Build-in cooling system,more than 6 hours operation time, less than 2 hours charging time.


The handheld ground station supports multi-language switching. It can perfectly display more than 10 languages such as English, Spanish, Korean, and Russian.Supports multiple ways of network connection such as WiFi and 4G connection. The dual antenna signals complement each other with super high sensitivity. Greatly enhance the communication ability of weak signals.
