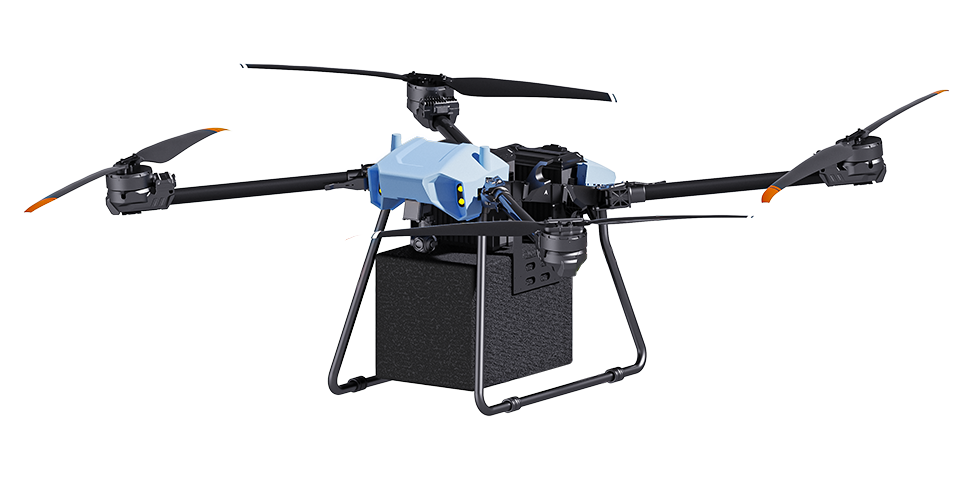

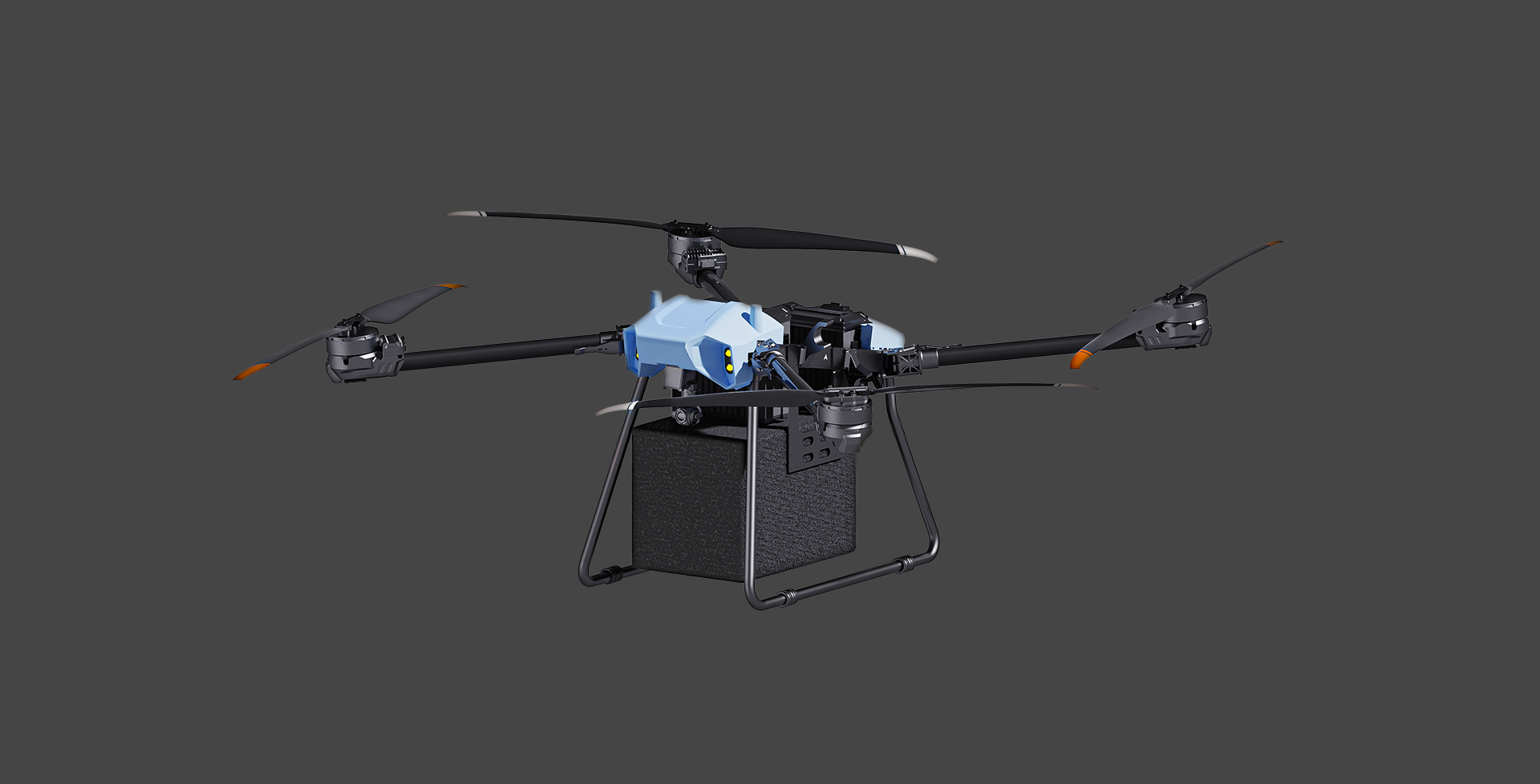

Aerial Delivery Drone BRO Y60

BRO Y60 delivery drone brings a new solution for complex environment transportation task. BRO Y60 supports cargo mode and winch mode meet various kinds of delivery work.Long flight distance and heavy payload offer efficient,economical,safe delivery solution.

Strong Structure,Compact Design

The truss style design and reinforced frame,strong enough to fight against harsh environments and extreme weather.

Folded Arms and Compact Size

Compact size will make it much easier to take the drone on various rough road.Single pilot,single truck and single drone achieve high efficient work.

Heavy Payload and Long Distance

Dual battery design extended the flight time greatly. With 30kg payload,max flight time is 20min. Max flight speed 20m/s.

Strong Signal and Long Distance Data Transmission

Max data transmission distance is 10km. It is suitable for long distance and heavy payload delivery task.

High Resolution Triaxial Gimble Camera

Equipped with high resolution triaxial gimble camera, real-time adjusting,all the surroundings are all in your sight.

Intelligent Autonomous Flight Mode

BRO new generation V10 flight controller,supports manual mode,autonomous mode and one remote for multi drone mode for different task request.

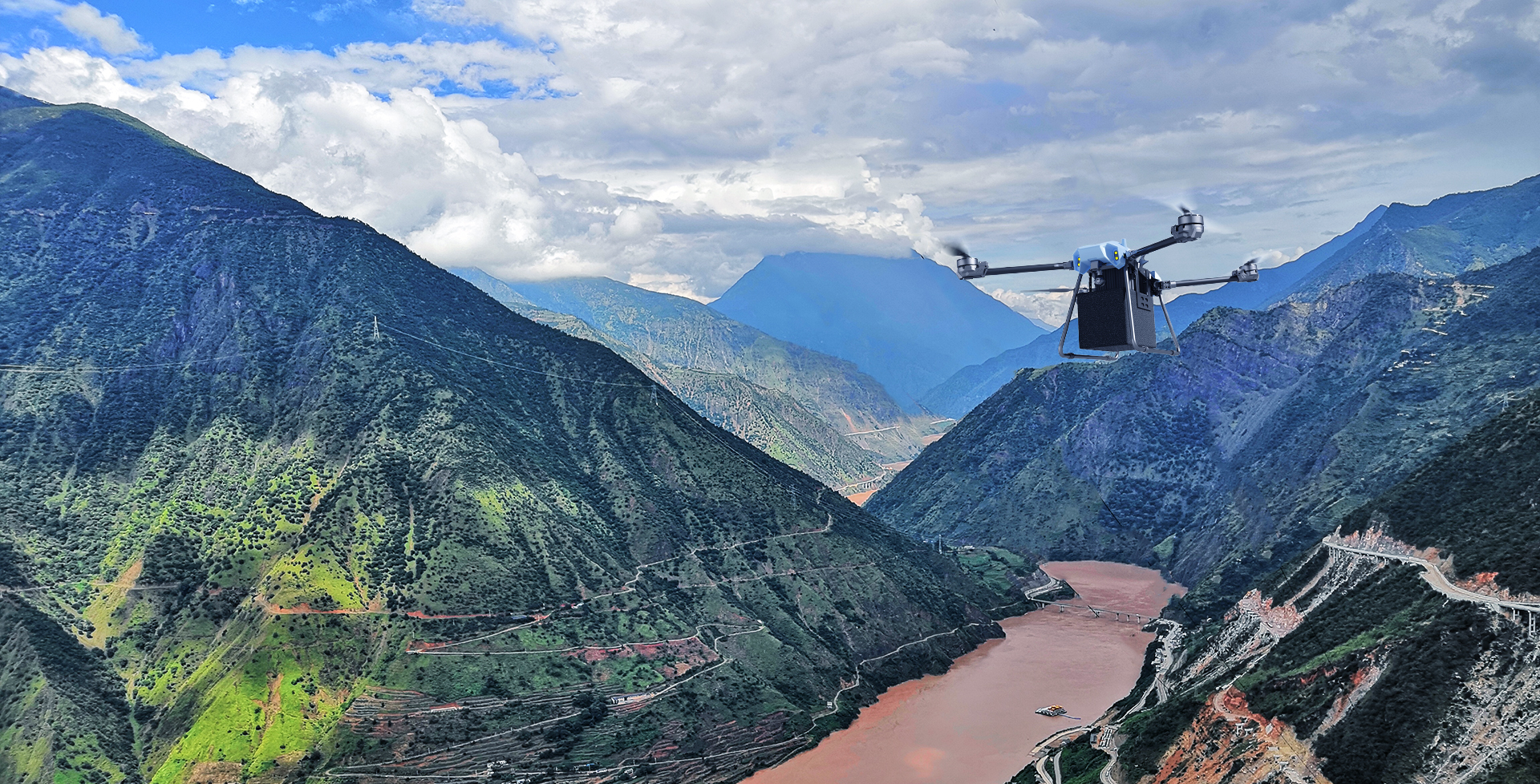

Fly Over Hills,Mountains,River and Seas for Delivery

High Resolution Triaxial Gimble Camera

3-Axis stabilized gimbal, 2K RTSP stream,10x Optical zoom ,8x Digital zoom, TF card video record and photo storage. Real-time video showing all the surroundings clearly.

Heavy Payload,Long Distance Delivery

30Kg

Max payload with dual batteries

40kg

Max payload with single battery

30Km

Max flight distance without payload with dual battery

20Km

Max flight distance with full payload with dual battery

20m/s

Max flight speed without payload with dual battery

15m/s

Max flight speed with full payload with dual battery

Long Distance Data Transmission System

HD digital video transmission, strong signal,max transmission distance 10km to meet long distance delivery task.

HD digital video transmission

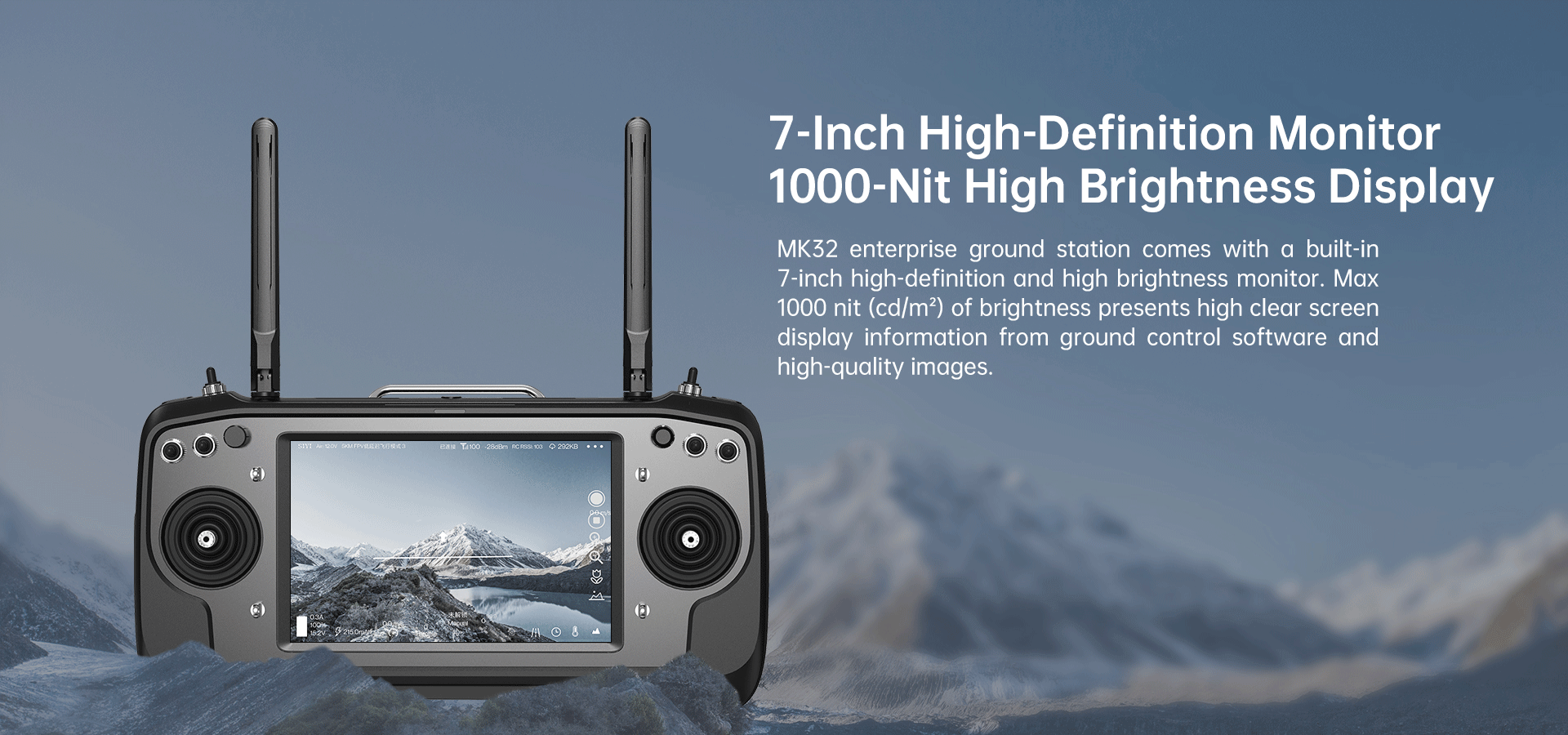

7" HD & high brightness screen

Longer endurance

Open SDK protocol

Super long range transmission datalink

Super expansibility

Super stability datalink

Special Android system for unmanned industry

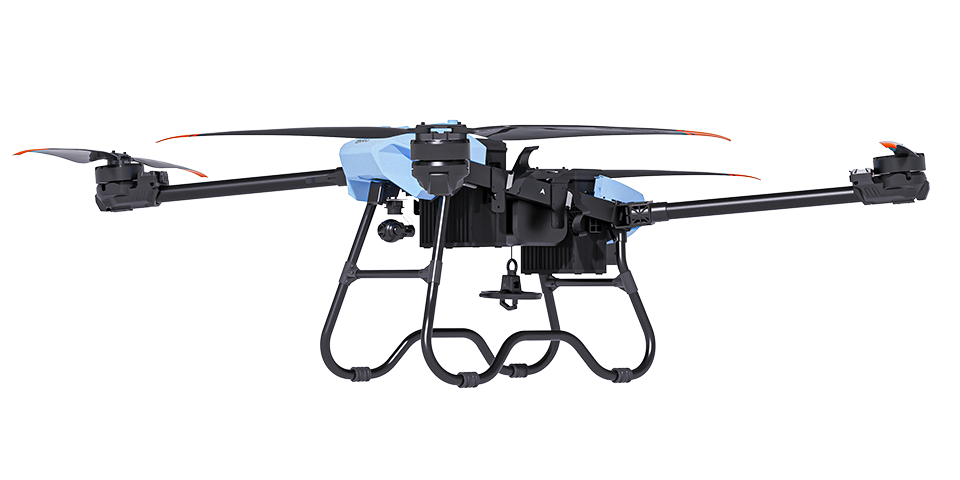

Cargo Mode and Winch Mode Swapping

20L EPP box that support easy loading and unloading,easy to swapping to winch mode. If the destination doesn’t have a safe landing site. Once the drone arrives at the destination,a single tap will automatically lowers the cargo.When the cargo reach loading surface,the winch system will release the cargo.

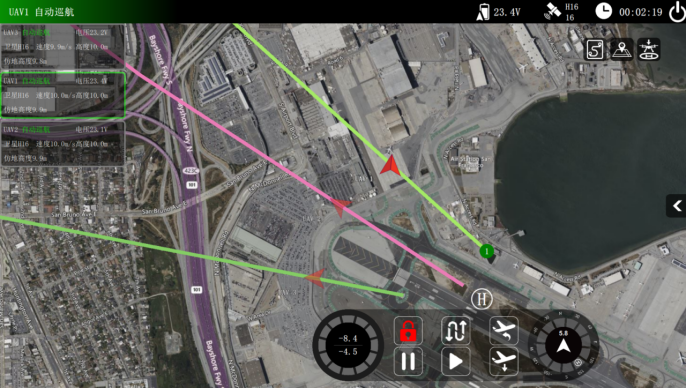

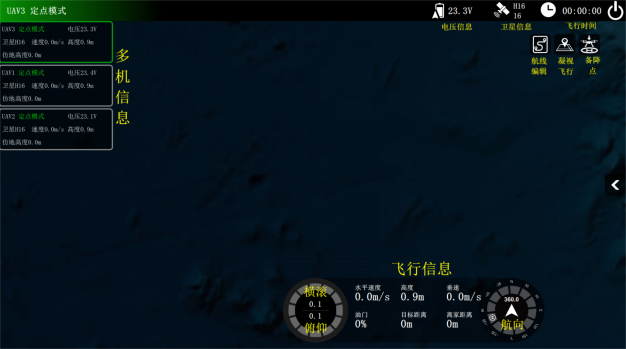

BRO V10 Intelligent Flight Controller

BRO V10 developed for smart delivery task, check battery level, power status, and mileage in real time, and monitor the reachability of the destination point to ensure operation safety.

Support one remote control for multi-drones. Each drone execute different task.

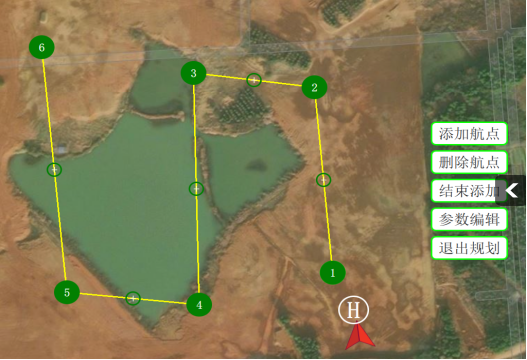

Flexible working mode, supports route planning,manual and autonomous work.

Intelligent Power System

BRO smart lithium battery uses high energy cells and an advanced power management system to provide long-lasting power to BRO U series drone. The optimized battery cells and heat dissipation design effectively keep the temperature of the battery in check.
BRO intelligent charger supports single phase and three phase AC power input. Three phase AC input is the fast charging model,which can charge the relative battery fully in 10~15minutes.Additionally, the charger includes overcurrent protection, overcharging protection, under-voltage protection,overheating protection, and status display.

Aerial Delivery Drone BRO Y60

BRO Y60 delivery drone brings a new solution for complex environment transportation task. BRO Y60 supports cargo mode and winch mode meet various kinds of delivery work.Long flight distance and heavy payload offer efficient,economical,safe delivery solution.

Strong Structure,Compact Design

The truss style design and reinforced frame,strong enough to fight against harsh environments and extreme weather.

Folded Arms and Compact Size

Compact size will make it much easier to take the drone on various rough road.Single pilot,single truck and single drone achieve high efficient work.

Heavy Payload and Long Distance

Dual battery design extended the flight time greatly. With 30kg payload,max flight time is 20min. Max flight speed 20m/s.

Strong Signal and Long Distance Data Transmission

Max data transmission distance is 10km. It is suitable for long distance and heavy payload delivery task.

High Resolution Triaxial Gimble Camera

Equipped with high resolution triaxial gimble camera, real-time adjusting,all the surroundings are all in your sight.

Intelligent Autonomous Flight Mode

BRO new generation V10 flight controller,supports manual mode,autonomous mode and one remote for multi drone mode for different task request.

Fly Over Hills,Mountains,River and Seas for Delivery

Fly Over Hills,Mountains,River and Seas for Delivery

High Resolution Triaxial Gimble Camera

3-Axis stabilized gimbal, 2K RTSP stream,10x Optical zoom ,8x Digital zoom, TF card video record and photo storage. Real-time video showing all the surroundings clearly.

Heavy Payload,Long Distance Delivery

30Kg

40kg

30Km

20Km

20m/s

15m/s

Long Distance Data Transmission System

HD digital video transmission, strong signal,max transmission distance 10km to meet long distance delivery task.

Cargo Mode and Winch Mode Swapping

BRO V10 Intelligent Flight Controller

BRO V10 developed for smart delivery task, check battery level, power status, and mileage in real time, and monitor the reachability of the destination point to ensure operation safety.

Support one remote control for multi-drones. Each drone execute different task.

Flexible working mode, supports route planning,manual and autonomous work.

Intelligent Power System

01

Large Capacity

02

10min Fast Charging

03

Overcharging Protection

04

Overcurrent Protection

05

Over Voltage Protection

06

Short Circuit Protection
